| Type | DTF Water Based |
|---|---|
| Ink Set | CMYK Lm Lc WW |
| Volume | 1000mL CMYK Lm Lc / 900mL White |
| No. of slots | 8 |
STS DTF XPJ 1682D Printer Bundle - 64" Direct to Film Printer for Custom T-Shirt Printing | Perfect for Small Business & Home Garment Decoration
$16225
$29500
-45% OFF
Free shipping on all orders over $50
7-15 days international
21 people viewing this product right now!
30-day free returns
Secure checkout
56208839
Guranteed safe checkout
Description
The STS XPJ 1682D 64” DTF Printer from Japan has a staggered dual-head design that provides ultra-fast print speeds. It produces smooth gradations while delivering high-quality printing even with reduced resolution.
It has SAI’s Flexi DTF Edition RIP Software, bundled with Flexi DTF Editor. The XPJ-1682D also features automatic bi-directional alignments, a user-friendly touch panel, added LED lighting, and an upgraded media feed flange that allows operators to easily and quickly load media and exchange multiple rolls. These features are designed to increase user friendly operation and maintenance while continuing to offer high production, high-quality direct to film printer output. The XPJ-1682D is paired with STS’s DTF ink, which offers users excellent color gamut and outstanding durability.
Since DTG technology works best on cotton pre-treated fabrics. DTF opens the door to a wide range of choices and is capable of printing onto non-treated cotton, silk, polyester, denim, nylon, leather, 50/50 blends, and more. It works equally well on white and dark textiles.
- STS DTF Inks (CMYK Lm Lc White x8)
- White ink circulation
- Built-in color sensor for auto bidirectional alignments
- Media flange allows for easy media loading
- Nozzle area selection
- Drop Master 2 Technology
- Improved feed mechanism corresponding to a wide range of media
- MUTOH Status Monitor (MSM) checks printer status in real time and print history
| Printing systems | Drop-on-demand Micro Piezo Inkjet Technology |
|---|---|
| Print head height | Three level adjustment: Low 1.5mm, Mid. 2.5mm, High 4.0mm |
| Print head | 2 (staggered set-up) |
| Max print resolution | 1440x1440dpi |
| Print modes | 1440/1080/720/360dpi |
| Media width | 64” |
| Media capacity | ø 5.9” dia / 2” & 3” cores /Roll media 66lbs or less |
| Max media thickness | Low 0.3mm, Mid. 1.3mm, High 2.8mm |
| Max printable width | 63.6 in |
| Height adjustment | Automatic |
| RIP software | Flexi 22 DTF Edition |
| Interface | Gigabit-Ethernet (1000BASE-T ) |
|---|---|
| Power Requirements | AC 100-120V± 10%, 50/60Hz ± 1Hz |
| Printing Environment | Operating temperature: 68°F – 75°F Operating humidity range: 35% – 45% |
| Power Consumption | Main: Operation status 77W or less | Standby: 52W or less |
| Dimensions (WxDxH) | Printer including stand: 108.26”x35.23”x56.22” cover closed |
| Weight | Body: 321.87lb | Stand: 70.54lb |

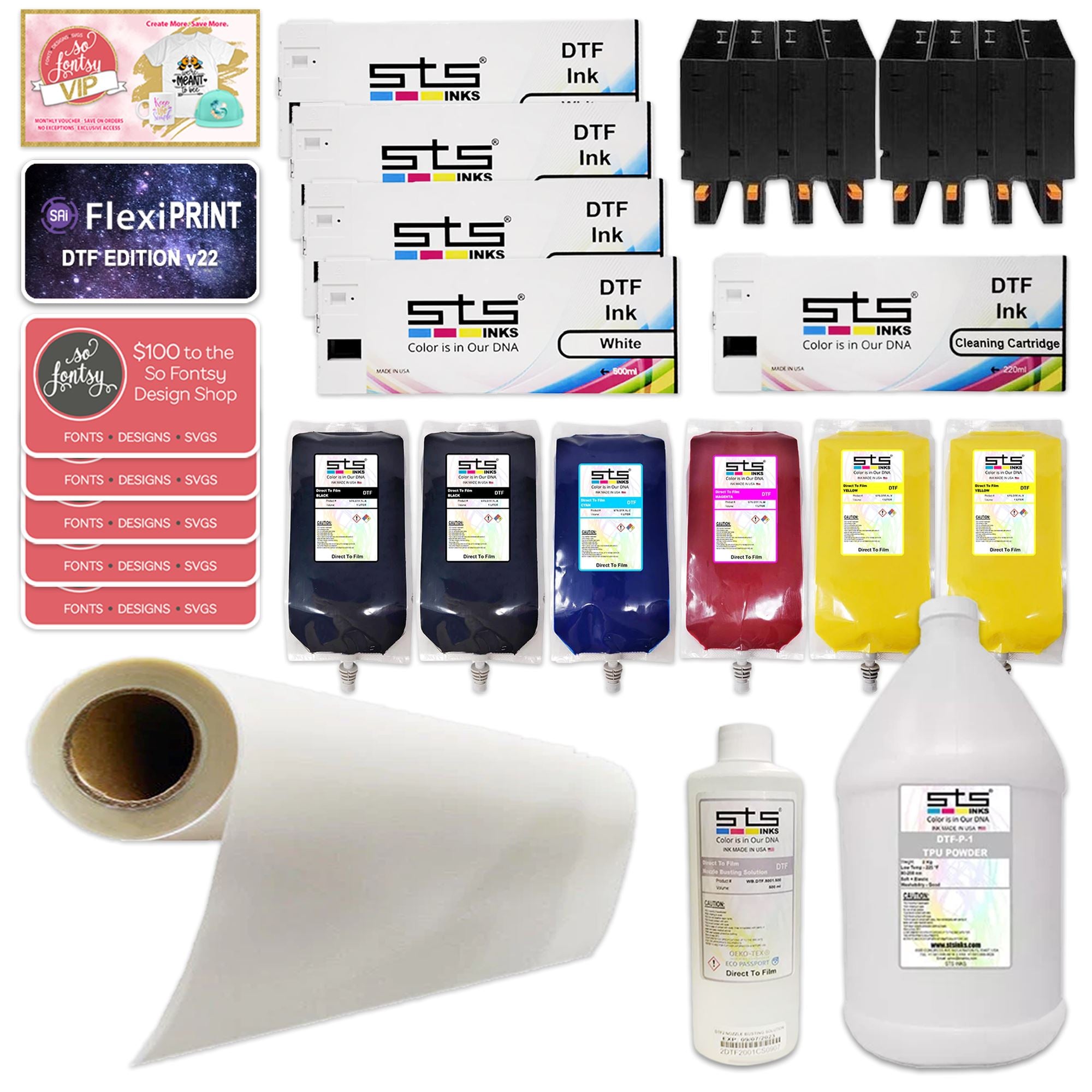

Bundle Includes:
- STS XPJ 1682D/Ink Adaptor/High Capacity - 64"
- Printer Stand
- Flexi Direct to Film RIP Software - $999.99 Value
- DTF Ink 1 Liter Bag – Cyan
- DTF Ink 1 Liter Bag – Magenta
- 2 - DTF Ink 1 Liter Bag – Black
- 2 - DTF Ink 1 Liter Bag – Yellow
- 4 - DTF Ink 500ml Cartridge – White

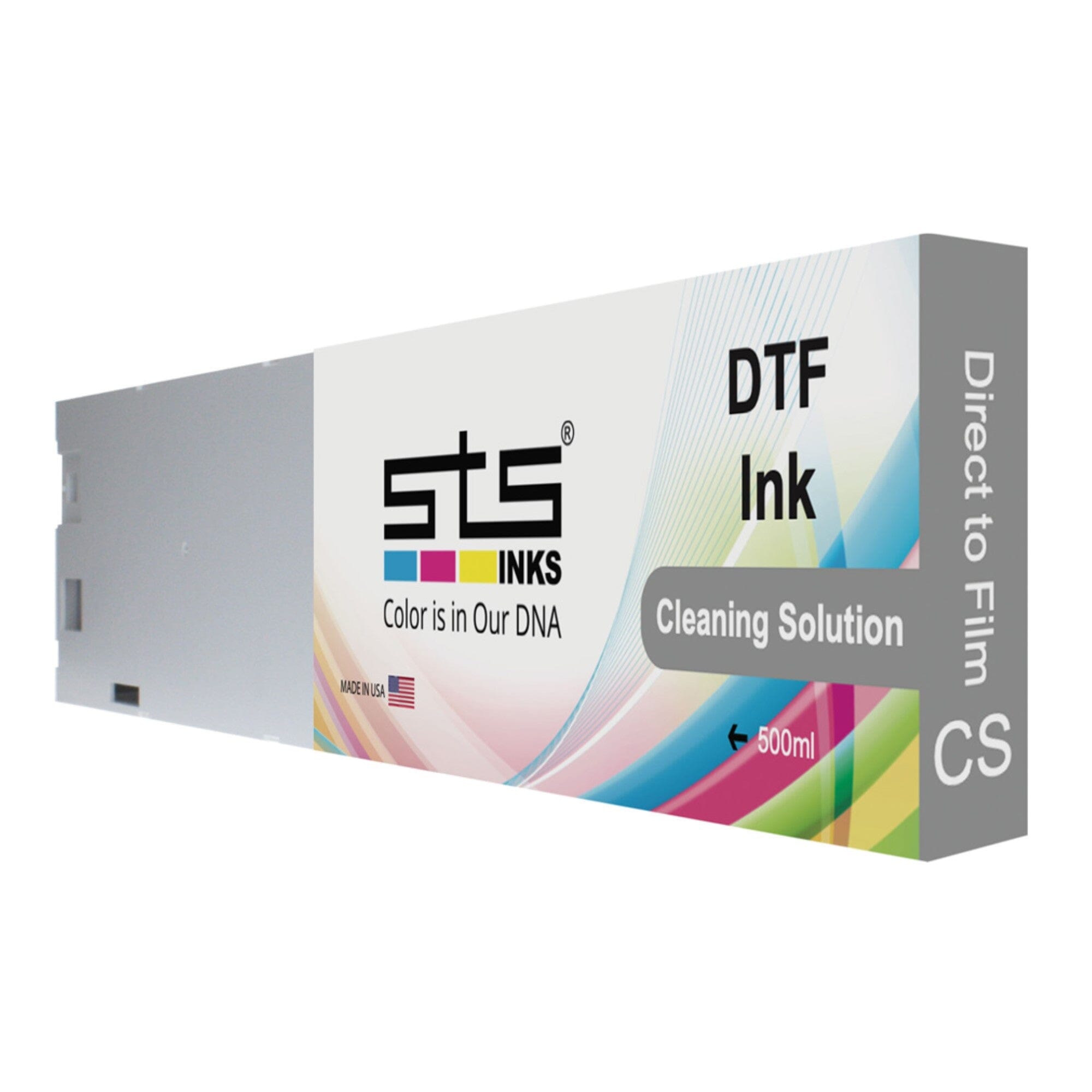

- 10 - STS/MUT DTF 220ml Cartridge - Cleaning Solution

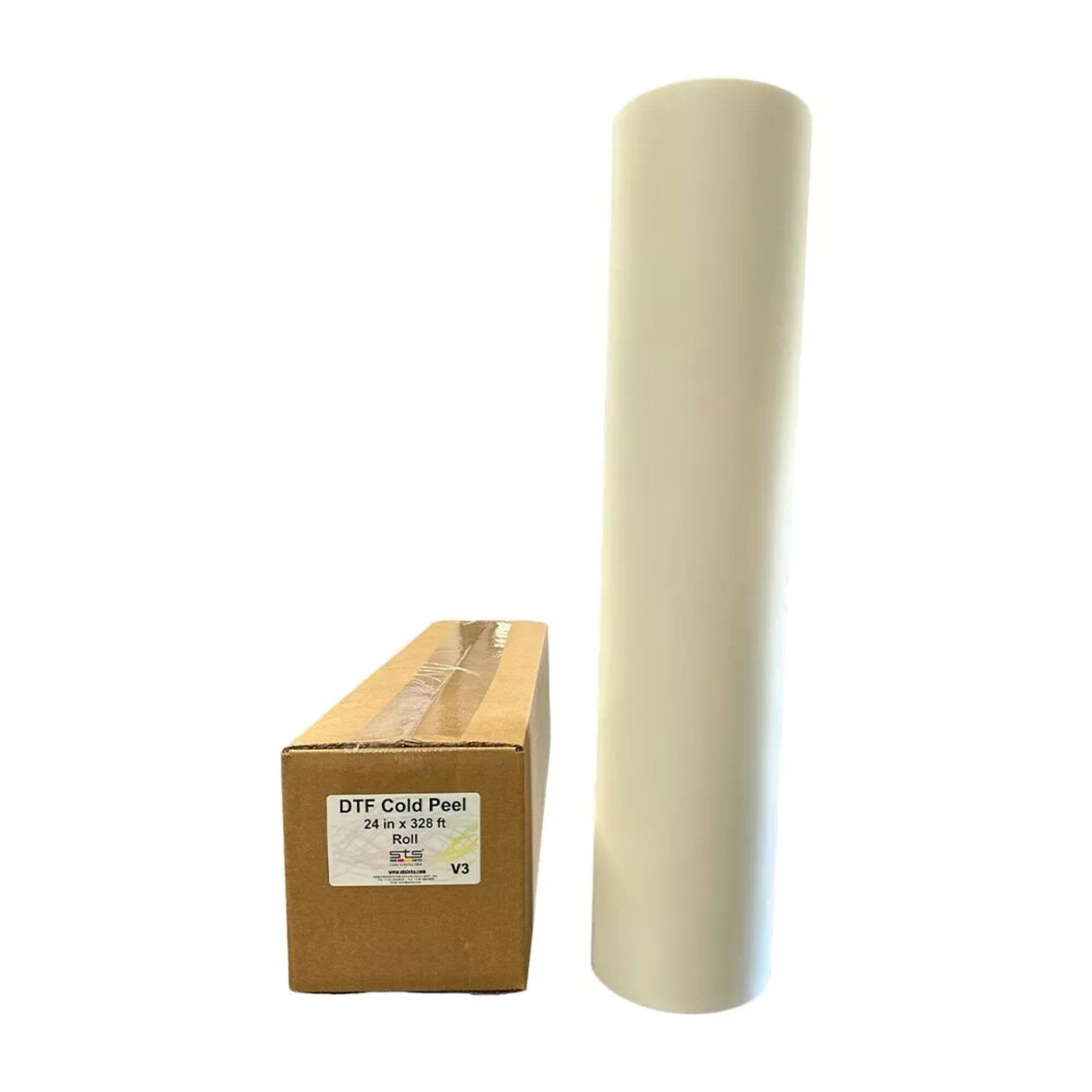

- Cold Peel DTF Film Roll - 24" x 328 FT
- Direct To Film Powder - 2 KG
- STS Direct to Film Nozzle Busting Solution 500ml
- 1st Month Membership to
- $500 in Designs from - SVGs, JPGs, Commercial Use (Please note that the card is valid for the portion of the site)
- 1 Year Warranty
All STS XPJ Printer Bundles Ship via Insured Freight
